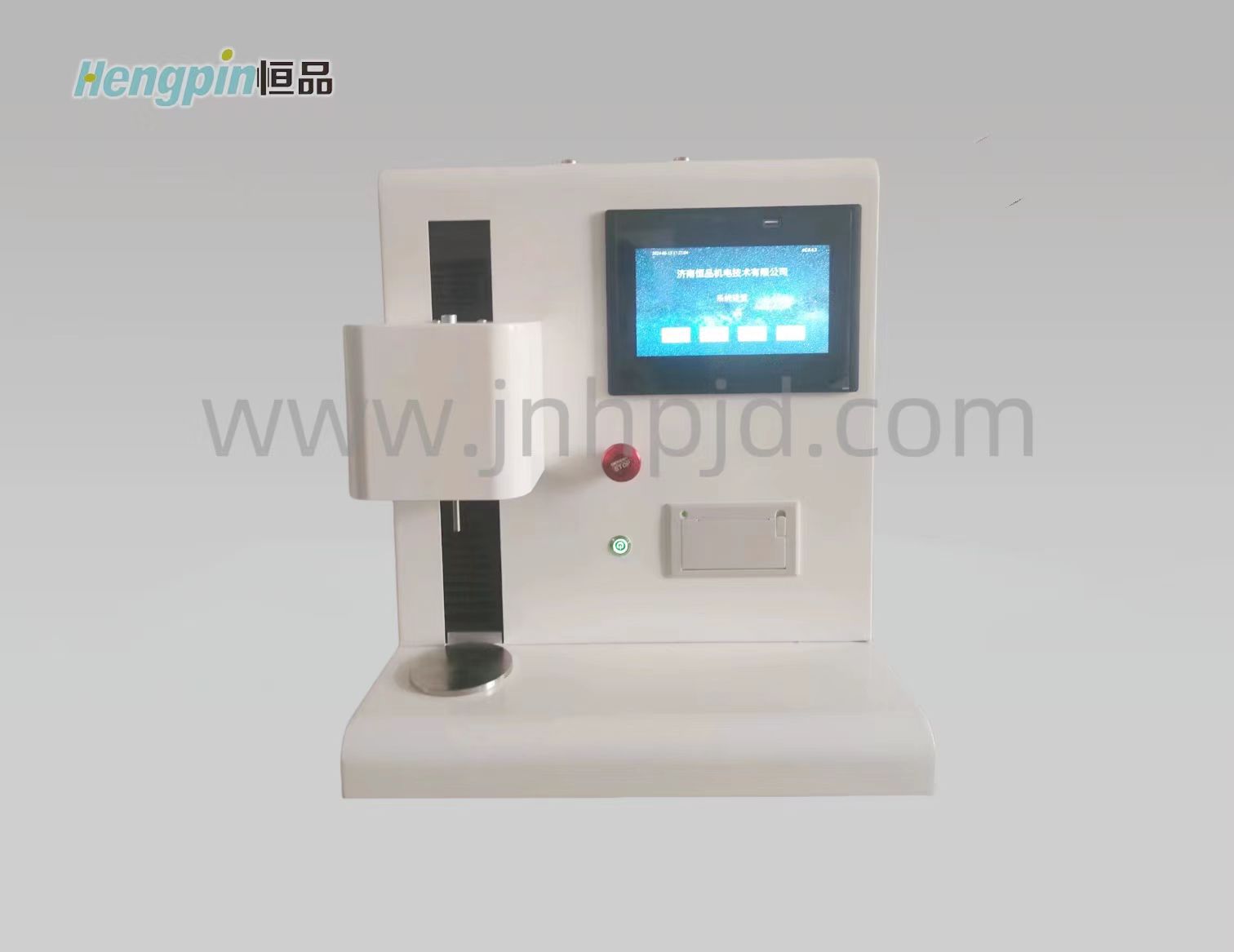

HP612B The brittleness tester

所屬分類:推薦產品
點擊次數:670次

訂購熱線:
手機:15318823307(微信同號)
固話:0531-85809007
濟南恒品機電有限公司
產品詳情

The brittleness tester is suitable for measuring the brittleness of different products such as food, medicine, chemical, and agricultural products, providing reference data for selecting product formulas and processes. It is also known as a brittleness tester, brittleness tester, etc.

Testing principle of brittleness tester:

The tester determines the brittleness of the product under different states by conducting a downward pressure test; So as to confirm its product performance

Characteristics of brittleness tester:

1. The touch screen display displays real-time force values, displacement deformation, fully automatic testing, and automatically saves the maximum value of the current test; The display interface can display the test curve in real time; Test real-time parameters such as speed and deformation.

2. Using a high-precision, fully digital speed control system and precision reducer, the precision screw pair is driven for testing, achieving a wide range of adjustment of the test speed and smooth operation.

3. Adopting high-precision sensors and professional measurement and control software, with high testing accuracy, wide testing range, and simple operation.

4. Equipped with a standard micro printer, it can print results at any time and can calculate multiple test results, maximum, minimum, and average values.

5. After selecting a computer, the software curve and test results are displayed on the same interface, including the curve and test data. Test data such as force, time, distance, and software displayed synchronously during the testing process. Data analysis, result data and curves, can store data infinitely, and can print A4 reports.

Technical parameters of brittleness tester:

Measurement range: 50 N (optional for 100 N, 500 N, or 1000 N)

Resolution: 0.1N

Accuracy: ± 0.5%

Test speed: (1-300) mm/min

Upper pressure head: 10mm pressure head

Parallel upper and lower pressure plates:<0.025mm

Lower pressure plate diameter: 120 mm

External dimensions: 430 x 350 x 710mm

Mass: 45kg

Power supply: 220V, 50Hz

Configuration of Brittleness Tester

Standard configuration: brittleness tester host, testing aids, micro printer. (Single machine can also be used)

Purchase: Lenovo computers, inkjet printers, online computer control software.
