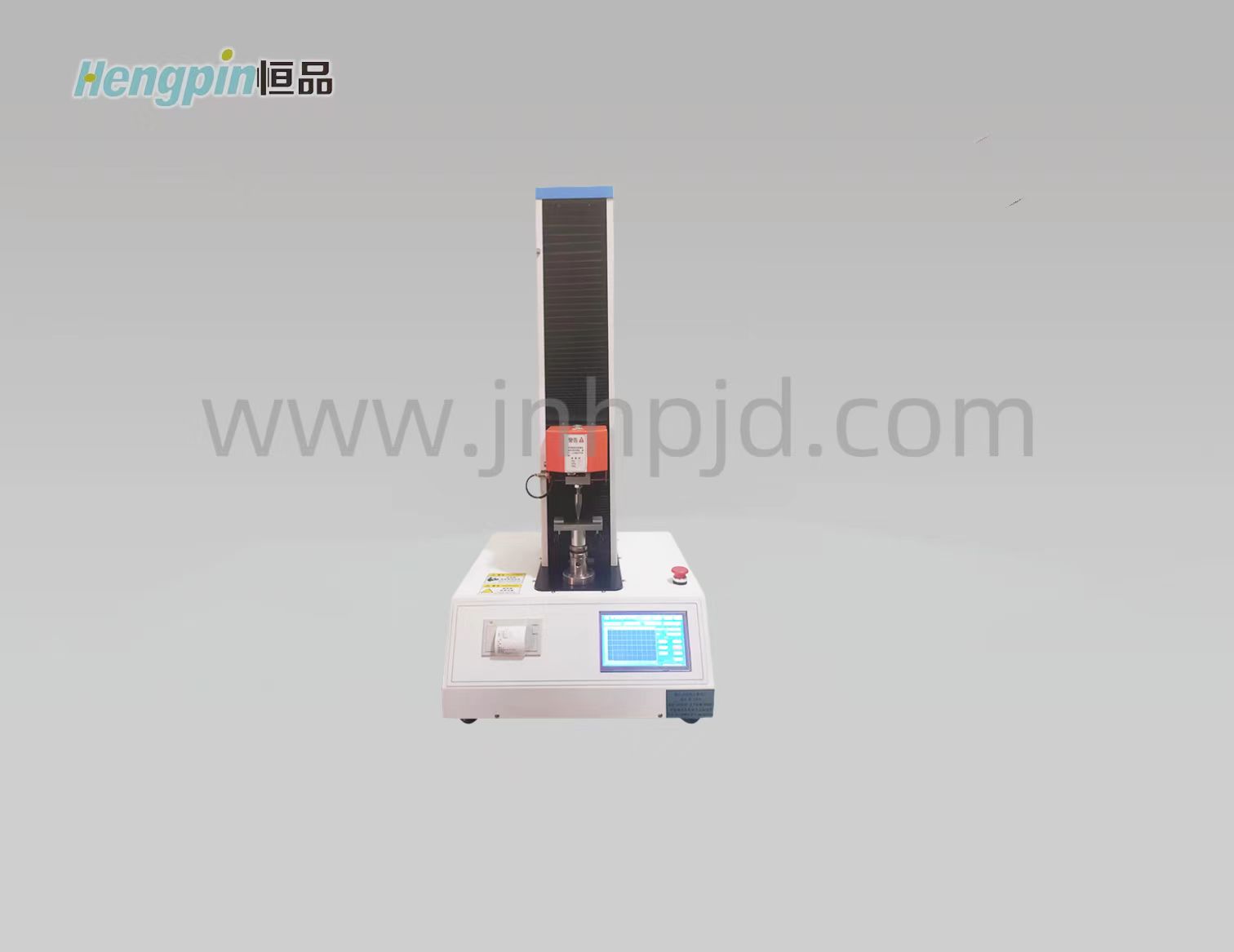

The HP-TCN-D Colloid Adhesion Tester, also known as the Probe Tack Tester, is one of the methods for testing adhesive tape adhesion. It is mainly used for initial adhesion testing of various tapes, adhesive colloids, and other different products. The product meets international standards such as ASTM D2979, and is suitable for various research institutions, adhesive enterprises, inspection and quarantine institutions such as self-adhesives.

Testing principle: Use a 1X1MM precision ground flat probe to press on the adhesive surface, fully contact for a certain period of time, and then completely separate in the opposite direction at a constant speed to generate the maximum force. This maximum force value is the adhesive force of the tested sample, and the machine will record the maximum tensile force value when leaving.

Product features:

1. The data collection system has the characteristics of being precise and easy to use, and is currently an advanced measuring instrument.

2. Adopting touch screen control technology, high precision, and easy operation.

3. Using high-precision sensors, the accuracy can reach+0.1% of the weight sensor standard.

4. Advanced silent motor and precision ball screw ensure smooth transmission and more accurate displacement measurement.

5. High definition touch screen display, clear operation at a glance

6. Connect to a micro printer: It can achieve experimental dates and results, and can be printed

7. It has the function of maintaining experimental force values, making it more convenient to view experimental results.

8. Stepless speed regulation can be set arbitrarily within the range of 1-800

9. The contact time of the pressure head is adjustable, and the initial contact pressure is adjustable.

10. Pressing speed, initial pressure, test speed, contact time, once set, one click test, the entire experimental process is fully automatically controlled.

Technical parameters:

1. Load range: 0-50N

2. Accuracy: 0.5 level

3. Resolution: 0.01N

4. Test speed: 24 ipm (inches/minute), 61cpm (centimeters/minute), 610 mm/min (adjustable from 0.001 to 800 mm/min)

5. Test stroke: 350mm (standard configuration)

6. Speed control range: 1mm/min~800mm/min

7. Test machine size: 530 * 266 * 1450 or 1610 mm

8. Power supply: 220V, 50Hz

9. Weight: 75kG

10. Adjustable contact time of the pressure head: 0-99s

11. Contact pressure head: 1x1mm

Standard configuration: host, power cord, one pair of probes, and one pair of
