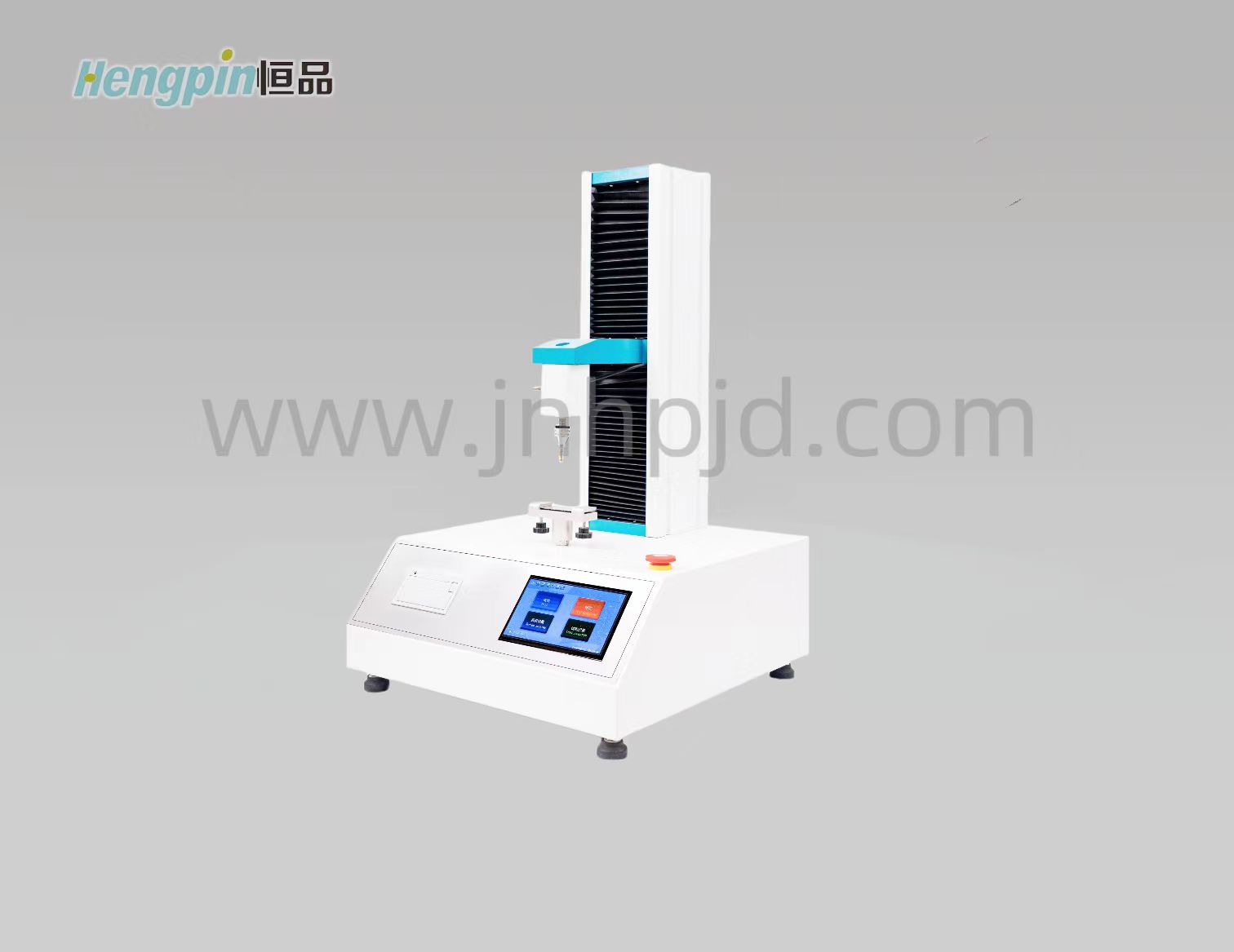

The HP-TCN-A Probe Tack Tester, also known as the Probe Tack Tester, is one of the methods for testing the initial adhesion of adhesive tapes. It is mainly used for testing the initial adhesion of various products such as tapes and adhesives. The product meets international standards such as ASTM D2979 and is suitable for various research institutions, adhesive enterprises, and inspection and quarantine institutions such as stickers.
Testing principle: Use a 5mm diameter precision ground flat probe to press on the adhesive surface, make complete contact, and then completely separate in the opposite direction at a constant speed to generate the maximum force. This maximum force value is the initial adhesive force of the tested sample, and the machine will record the maximum tensile force value when leaving.
Product features of probe type initial adhesion tester:
1. The data collection system has the characteristics of being precise and easy to use, and is currently an advanced measuring instrument.
2. Adopting touch screen control technology, high precision, and easy operation.
3. Using high-precision sensors, the accuracy can reach+0.1% of the weight sensor standard.
4. Advanced silent motor and precision ball screw ensure smooth transmission and more accurate displacement measurement.
5. High definition LCD display, clear operation at a glance
6. Connect to a micro printer: It can achieve experimental dates and results, and can be printed
7. It has the function of maintaining experimental force values, making it more convenient to view experimental results.
8. Stepless speed regulation can set accuracy within the range of 1-800
Technical parameters of probe type initial adhesion tester:
1. Load range: 0-50N
2. Accuracy: 0.5 level
3. Resolution: 0.01N
4. Test speed: 24 ipm (inches/minute), 61cpm (centimeters/minute), 610 mm/min (adjustable from 0.001 to 800 mm/min)
5. Test stroke: 600mm (standard configuration)
6. Speed control range: 1mm/min~800mm/min
7. Test machine size: 530 * 266 * 1450 or 1810 mm
8. Power supply: 220V, 50Hz
9. Weight: 75kG
The standard configuration of the probe type initial adhesion tester includes a host, power cord, a pair of probes, and a pair of clamping accessories.
Operation interface of probe type initial adhesion tester:
Schematic diagram of clamping for probe type initial adhesion tester
