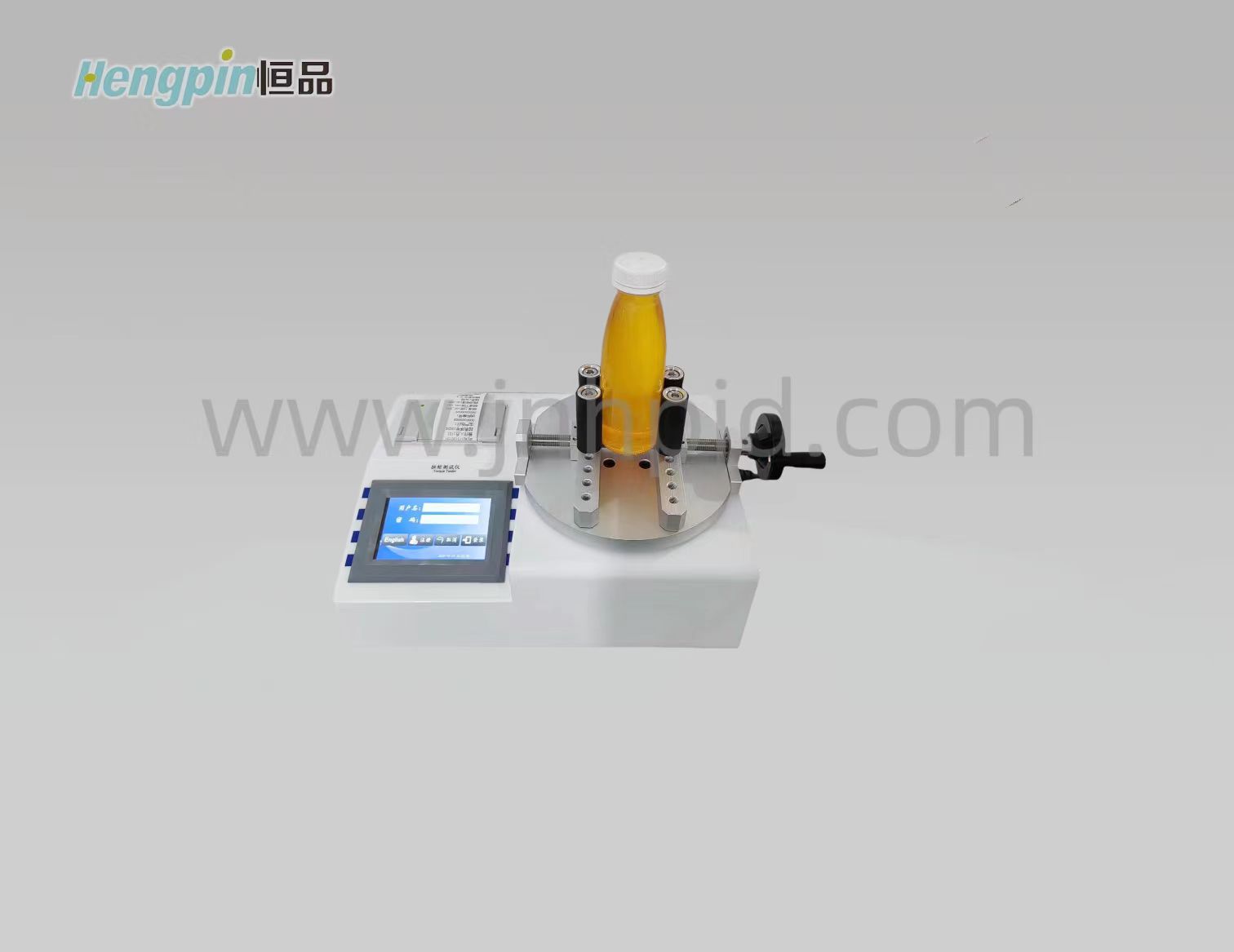

Product Introduction
The torque tester is an instrument designed in accordance with the relevant national standards for packaging bottle caps. Suitable for testing the torque value of bottle cap locking and opening for packaging products such as beverage bottles, mineral water bottles, milk bottles, oil drums, etc. This product is suitable for torque testing of bottle caps on packaging containers with standard circular or symmetrical shapes. It can achieve bidirectional testing of torque force by clockwise and counterclockwise rotation, and automatically record the maximum torque force value. The torque tester is widely used in quality inspection institutions, food, pharmaceuticals, cosmetics and other industries.
Product features
High definition touch screen operation, simple and feasible, with strong sense of technology
Conventional power supply, universal interface connection, convenient to use
Microcomputer control technology, open architecture, user-friendly human-machine interface operation, simple and convenient to use
Single group, multi group testing mode, automatic statistics of test results
Two measurement modes for locking force and opening force, achieving multiple uses for one machine
Built in multiple units, N • m, kg • cm, ib • in can be freely converted
Force retention function, which can retain the maximum test value
Result storage function, capable of storing up to 400 sets of test results for easy querying
Using high-precision torque sensors with a measurement accuracy of 0.5% F.S
LCD Chinese display, high-resolution clear screen display
Equipped with peak alarm to ensure orderly testing
Built in dedicated calibration program for easy calibration of instruments by metrology and calibration departments (third-party)
Third level account login, clear permissions, in compliance with pharmacopoeia regulations
The needle printer outputs result data, and the printed results can be retained for a long time, meeting the requirements of the pharmacopoeia
Real time display of interface curves for effective monitoring of testing progress
technical parameter
Measurement range: 0-5.0N • m 0-51kg • cm 0-44.25ib • in
Measurement unit: N • m kg • cm ib • in
Measurement accuracy: 0.5% F.S
Measurement modes: peak test (opening force), fixed value test (tightening force)
Clamping size: 3-180mm
Data storage: 400 sets
Operation mode: 4.3-inch capacitive touch screen
Screen resolution: 800x480
External dimensions: 420 (L) x 230 (W) x 245 (H) mm
Power supply: 220V 50Hz
Weight: approximately 10kg
Standard configuration: host, power cord, fuse, wrench, printing paper
Execution standards
GBT 17876, BBT 0025, BBT 0034 (GBT 14803) YBB 00112002-2015、YBB 00122002-2015、YBB 00262002-2015、ASTM D 2063、ASTM D 3198、ASTM D 3474
