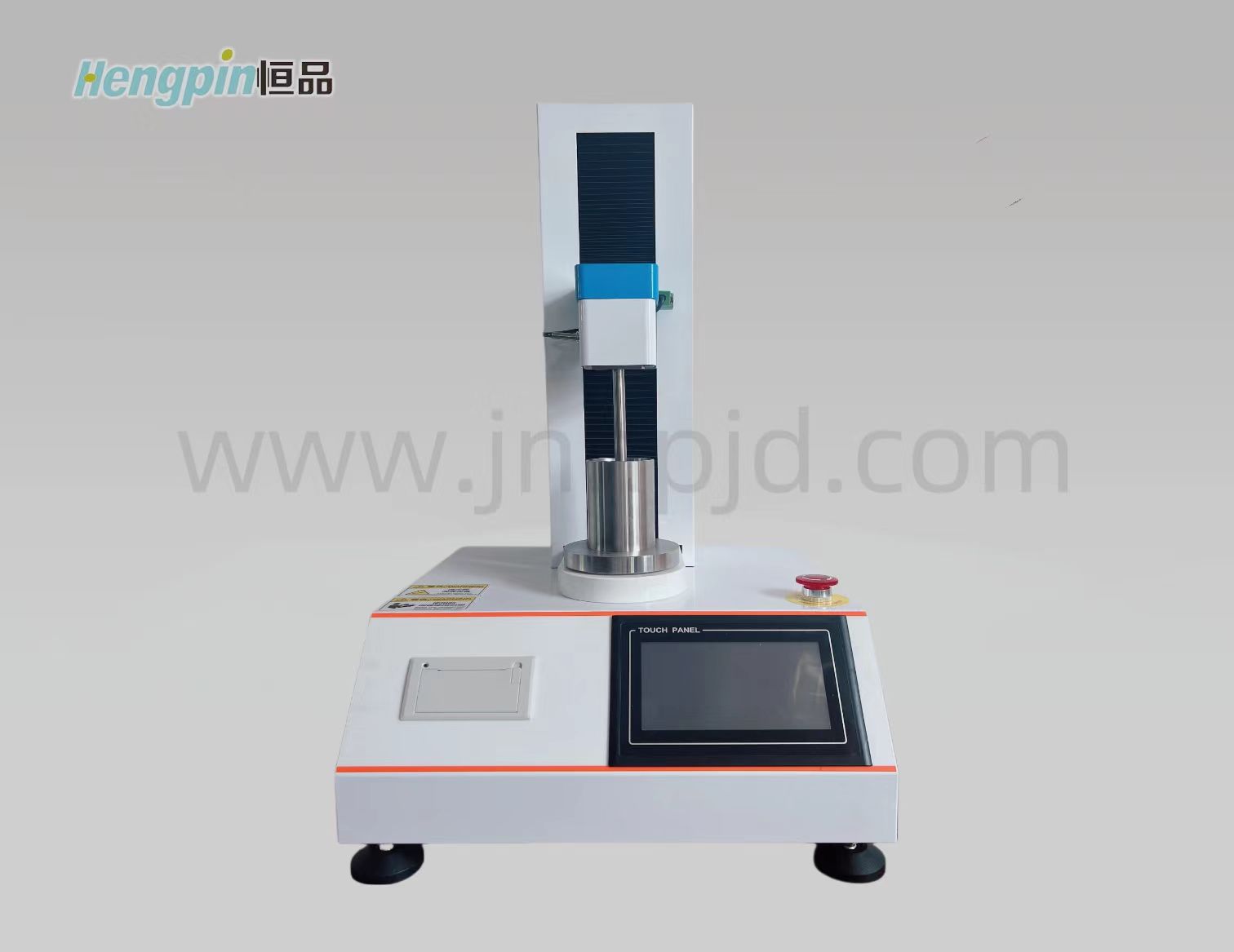

The HP658 tobacco elasticity tester is a specialized testing instrument for the elasticity of materials such as tobacco and tobacco leaves. This instrument is widely used in scientific research and quality testing in industries such as tobacco and cigarettes. This machine is also known as the tobacco elasticity tester, tobacco elasticity tester, or tobacco elasticity tester
The HP658 tobacco elasticity tester meets the standard:
The instrument complies with the requirements of the tobacco industry standard YC/T 186-2004 "Method for determining the elasticity of cigarette cut tobacco".
The testing principle of HP658 tobacco elasticity tester:
The instrument continuously applies the specified pressure to the tobacco and detects the height H1 of the compressed tobacco; Then release the pressure, and after a period of time, measure the height of the tobacco rebound H2; Automatically calculate the elasticity of tobacco based on the pressure and pressure relief height values.
Product features of tobacco elasticity tester:
1. The data collection system has the characteristics of being precise and easy to use.
2. Adopting touch screen control technology, high precision, and easy operation.
3. Using high-precision sensors, the accuracy can reach+0.1% of the weight sensor standard.
4. The silent motor and precision ball screw ensure smooth transmission and more accurate displacement measurement.
5. High definition LCD display, clear operation at a glance
6. Connect to a micro printer: It can achieve experimental dates, test results, and printing
7. The force, pressure speed, and pressure time of the measuring head can be set arbitrarily within a certain range,
The main technical indicators of the tobacco elasticity tester are:
Compression time: (20.0 ± 0.1) s
Pressure release time: (15.0 ± 0.1) s
Pressure application speed: (20 ± 1) mm/s
Sample mass: (50 ± 0.1) g
Heavy load: (98 ± 0.98) N
Light load: (1.96 ± 0.196) N
Measuring cylinder: inner diameter (90 ± 1) mm, height 210 mm
Electronic balance accuracy: 0.1 g
Power supply: AC 220V ± 22V, 50Hz
External dimensions (mm): 450 x 450 x 810
Overall weight: approximately 70kg
